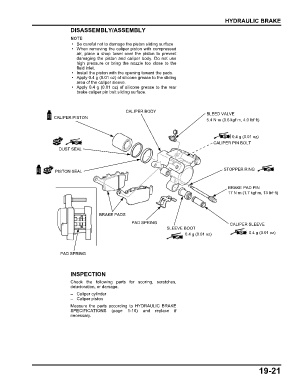

                                                                                               HYDRAULIC BRAKE
                               DISASSEMBLY/ASSEMBLY


                                • Be careful not to damage the piston sliding surface
                                • When removing the caliper piston with compressed
                                 air,  place a  shop towel over the  piston  to prevent
                                 damaging the piston and caliper body. Do not use
                                 high  pressure or  bring the nozzle  too  close to the
                                 fluid inlet.
                                • Install the piston with the opening toward the pads.
                                • Apply 0.4 g (0.01 oz) of silicone grease to the sliding
                                 area of the caliper sleeve.
                                • Apply 0.4 g (0.01 oz) of silicone grease to the rear
                                 brake caliper pin bolt sliding surface.



                                                      CALIPER BODY                     BLEED VALVE
                        CALIPER PISTON
                                                                                       5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)


                                                                                                  0.4 g (0.01 oz)
                                                                                          CALIPER PIN BOLT
                          DUST SEAL




                        PISTON SEAL                                                            STOPPER RING


                                                                                                BRAKE PAD PIN
                                                                                                17 N·m (1.7 kgf·m, 13 lbf·ft)



                                           BRAKE PADS
                                                        PAD SPRING                               CALIPER SLEEVE
                                                                       SLEEVE BOOT
                                                                              0.4 g (0.01 oz)            0.4 g (0.01 oz)




                          PAD SPRING



                               INSPECTION
                               Check the following  parts  for scoring,  scratches,
                               deterioration, or damage.
                               – Caliper cylinder
                               – Caliper piston
                               Measure the parts according to HYDRAULIC  BRAKE
                               SPECIFICATIONS (page  1-10) and  replace if
                               necessary.











                                                                                                             19-21
