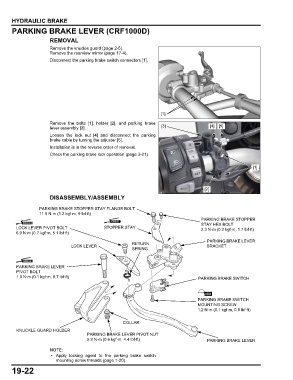

      HYDRAULIC BRAKE
      PARKING BRAKE LEVER (CRF1000D)

                      REMOVAL
                      Remove the knuckle guard (page 2-5).
                      Remove the rearview mirror (page 17-4).
                      Disconnect the parking brake switch connectors [1].












                                                                    [1]

                      Remove the bolts [1], holder [2],  and  parking brake
                      lever assembly [3].                           [3]                  [4]  [5]
                      Loosen  the lock nut [4]  and  disconnect the parking
                      brake cable by turning the adjuster [5].
                      Installation is in the reverse order of removal.
                      Check the parking brake lock operation (page 3-21).

                                                                                                           [1]




                                                                                      [2]
                      DISASSEMBLY/ASSEMBLY

                 PARKING BRAKE STOPPER STAY FLANGE BOLT
                 11.9 N·m (1.2 kgf·m, 9 lbf·ft)
                                                                                     PARKING BRAKE STOPPER
                                                                                     STAY HEX BOLT
        LOCK LEVER PIVOT BOLT                STOPPER STAY                            2.3 N·m (0.2 kgf·m, 1.7 lbf·ft)
        6.9 N·m (0.7 kgf·m, 5.1 lbf·ft)
                                                                                       PARKING BRAKE LEVER
                                                        RETURN
                               LOCK LEVER                                              BRACKET
                                                        SPRING


        PARKING BRAKE LEVER
        PIVOT BOLT
        1.0 N·m (0.1 kgf·m, 0.7 lbf·ft)                                             PARKING BRAKE SWITCH




                                                                                    PARKING BRAKE SWITCH
                                                                                    MOUNTING SCREW
                                                                                    1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)

                                                    COLLAR

        KNUCKLE GUARD HOLDER
                                     PARKING BRAKE LEVER PIVOT NUT
                                     5.9 N·m (0.6 kgf·m, 4.4 lbf·ft)                    PARKING BRAKE LEVER


                       • Apply locking agent  to the parking brake switch
                        mounting screw threads (page 1-20).
      19-22
