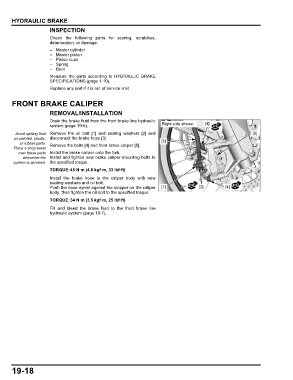

      HYDRAULIC BRAKE
                      INSPECTION
                      Check the following  parts  for scoring,  scratches,
                      deterioration, or damage.
                      – Master cylinder
                      – Master piston
                      – Piston cups
                      –Spring
                      – Boot
                      Measure the parts according to HYDRAULIC BRAKE
                      SPECIFICATIONS (page 1-10).
                      Replace any part if it is out of service limit.


      FRONT BRAKE CALIPER

                      REMOVAL/INSTALLATION
                      Drain the brake fluid from the front brake line hydraulic
                      system (page 19-6).                            Right side shown:  [4]
       Avoid spilling fluid  Remove the oil bolt [1] and sealing washers [2] and                           [5]
       on painted, plastic,  disconnect the brake hose [3].         [3]
         or rubber parts.  Remove the bolts [4] and front brake caliper [5].
       Place a shop towel
         over these parts  Install the brake caliper onto the fork.
           whenever the  Install and tighten new brake caliper mounting bolts to
       system is serviced.  the specified torque.
                      TORQUE:45 N·m (4.6 kgf·m, 33 lbf·ft)
                      Install  the brake hose to the  caliper body with  new
                      sealing washers and oil bolt.
                      Push the hose eyelet against the stopper on the caliper  [1]  [2]        [4]
                      body, then tighten the oil bolt to the specified torque.
                      TORQUE:34 N·m (3.5 kgf·m, 25 lbf·ft)
                      Fill and bleed the brake fluid to the front brake line
                      hydraulic system (page 19-7).
