HYDRAULIC BRAKE

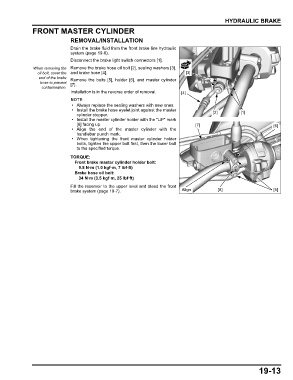

FRONT MASTER CYLINDER

REMOVAL/INSTALLATION
Drain the brake fluid from the front brake line hydraulic
system (page 19-6).
Disconnect the brake light switch connectors [1].
When removing the Remove the brake hose oil bolt [2], sealing washers [3],
oil bolt, cover the and brake hose [4]. [3]
end of the brake Remove the bolts [5], holder [6], and master cylinder
hose to prevent [7].
contamination.
Installation is in the reverse order of removal. [4]

• Always replace the sealing washers with new ones.
• Install the brake hose eyelet joint against the master [2] [1]
cylinder stopper.
• Install the master cylinder holder with the "UP" mark
[8] facing up. [7] [6]
• Align the end of the master cylinder with the
handlebar punch mark.
• When tightening the front master cylinder holder
bolts, tighten the upper bolt first, then the lower bolt
to the specified torque.
TORQUE:
Front brake master cylinder holder bolt:
9.8 N·m (1.0 kgf·m, 7 lbf·ft)
Brake hose oil bolt:
34 N·m (3.5 kgf·m, 25 lbf·ft)
Fill the reservoir to the upper level and bleed the front
brake system (page 19-7). Align [8] [5]

19-13
