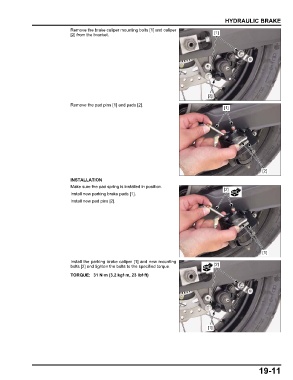

HYDRAULIC BRAKE
Remove the brake caliper mounting bolts [1] and caliper
[2] from the bracket. [1]

[2]

Remove the pad pins [1] and pads [2].
[1]

[2]
INSTALLATION
Make sure the pad spring is installed in position.
[2]
Install new parking brake pads [1].
Install new pad pins [2].

[1]

Install the parking brake caliper [1] and new mounting
bolts [2] and tighten the bolts to the specified torque. [2]
TORQUE: 31 N·m (3.2 kgf·m, 23 lbf·ft)

[1]

19-11
