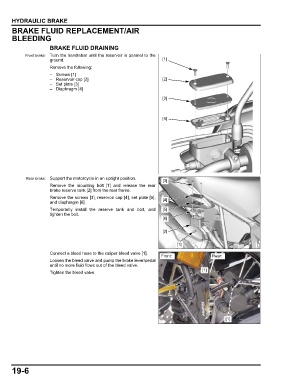

HYDRAULIC BRAKE
BRAKE FLUID REPLACEMENT/AIR
BLEEDING

BRAKE FLUID DRAINING
Front brake: Turn the handlebar until the reservoir is parallel to the
ground. [1]
Remove the following:
– Screws [1]
– Reservoir cap [2] [2]
– Set plate [3]
– Diaphragm [4]

[3]

[4]

Rear brake: Support the motorcycle in an upright position.
[3]
Remove the mounting bolt [1] and release the rear
brake reserve tank [2] from the rear frame.
Remove the screws [3], reservoir cap [4], set plate [5], [4]
and diaphragm [6].
Temporarily install the reserve tank and bolt, and [5]
tighten the bolt.
[6]

[2]

[1]
Connect a bleed hose to the caliper bleed valve [1].
Front: Rear:
Loosen the bleed valve and pump the brake lever/pedal
until no more fluid flows out of the bleed valve.
[1]
Tighten the bleed valve.

[1]

19-6
