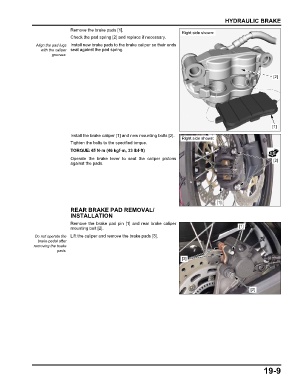

                                                                                               HYDRAULIC BRAKE
                               Remove the brake pads [1].
                                                                             Right side shown:
                               Check the pad spring [2] and replace if necessary.
                Align the pad lugs  Install new brake pads to the brake caliper so their ends
                  with the caliper  seat against the pad spring.
                       grooves.



                                                                                                                   [2]











                                                                                                                   [1]

                               Install the brake caliper [1] and new mounting bolts [2].
                                                                             Right side shown:
                               Tighten the bolts to the specified torque.
                               TORQUE:45 N·m (46 kgf·m, 33 lbf·ft)

                               Operate  the brake lever to seat the caliper pistons                                [2]
                               against the pads.








                                                                                            [1]
                               REAR BRAKE PAD REMOVAL/
                               INSTALLATION

                               Remove the brake pad  pin [1]  and  rear  brake caliper
                               mounting bolt [2].                                                    [1]
                Do not operate the  Lift the caliper and remove the brake pads [3].
                 brake pedal after
               removing the brake
                         pads.
                                                                             [3]






                                                                                                          [2]


















                                                                                                               19-9
