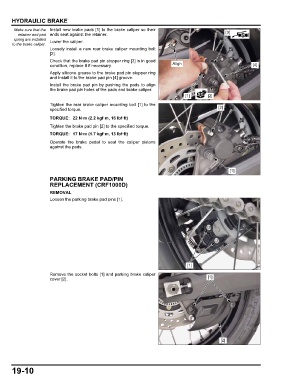

HYDRAULIC BRAKE
Make sure that the Install new brake pads [1] to the brake caliper so their
retainer and pad ends seat against the retainer. [3]
spring are installed Lower the caliper.
to the brake caliper.
Loosely install a new rear brake caliper mounting bolt
[2].
Check that the brake pad pin stopper ring [3] is in good
condition, replace it if necessary. Align [4]
Apply silicone grease to the brake pad pin stopper ring
and install it to the brake pad pin [4] groove.
Install the brake pad pin by pushing the pads to align
the brake pad pin holes of the pads and brake caliper.
[1] [2]

Tighten the rear brake caliper mounting bolt [1] to the
specified torque. [2]
TORQUE: 22 N·m (2.2 kgf·m, 16 lbf·ft)
Tighten the brake pad pin [2] to the specified torque.
TORQUE: 17 N·m (1.7 kgf·m, 13 lbf·ft)
Operate the brake pedal to seat the caliper pistons
against the pads.

[1]
PARKING BRAKE PAD/PIN
REPLACEMENT (CRF1000D)

REMOVAL
Loosen the parking brake pad pins [1].

[1]

Remove the socket bolts [1] and parking brake caliper
cover [2]. [1]

[2]

19-10
