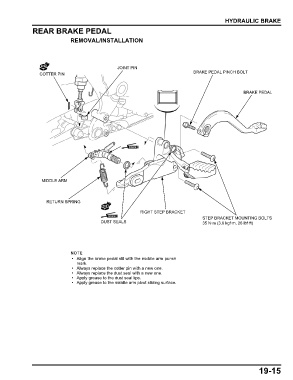

                                                                                               HYDRAULIC BRAKE
               REAR BRAKE PEDAL

                               REMOVAL/INSTALLATION





                                                  JOINT PIN
                                                                                  BRAKE PEDAL PINCH BOLT
                  COTTER PIN



                                                                                                       BRAKE PEDAL




















                  MIDDLE ARM




                    RETURN SPRING

                                                            RIGHT STEP BRACKET
                                                                                      STEP BRACKET MOUNTING BOLTS
                                           DUST SEALS                                 35 N·m (3.6 kgf·m, 26 lbf·ft)








                                • Align the brake pedal slit with the middle arm punch
                                 mark.
                                • Always replace the cotter pin with a new one.
                                • Always replace the dust seal with a new one.
                                • Apply grease to the dust seal lips.
                                • Apply grease to the middle arm pivot sliding surface.




















                                                                                                             19-15
