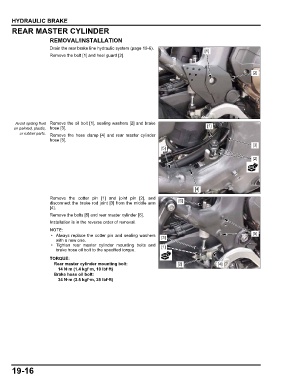

      HYDRAULIC BRAKE
      REAR MASTER CYLINDER

                      REMOVAL/INSTALLATION
                      Drain the rear brake line hydraulic system (page 19-6).
                                                                                      [1]
                      Remove the bolt [1] and heel guard [2].


                                                                                                           [2]












       Avoid spilling fluid Remove the oil bolt [1], sealing washers [2] and brake
       on painted, plastic, hose [3].                                                   [1]
         or rubber parts.  Remove the hose clamp  [4]  and rear  master cylinder
                      hose [5].
                                                                                                           [3]
                                                                    [5]

                                                                                                           [2]






                                                                                  [4]
                      Remove the cotter pin [1] and joint pin [2], and
                      disconnect the brake rod joint [3] from the middle arm  [6]
                      [4].
                      Remove the bolts [5] and rear master cylinder [6].
                      Installation is in the reverse order of removal.


                       • Always replace the cotter pin and sealing washers  [3]                            [5]
                        with a new one.
                       • Tighten rear master cylinder mounting  bolts and  [1]
                        brake hose oil bolt to the specified torque.

                      TORQUE:
                        Rear master cylinder mounting bolt:                [2]              [4]
                         14 N·m (1.4 kgf·m, 10 lbf·ft)
                        Brake hose oil bolt:
                         34 N·m (3.5 kgf·m, 25 lbf·ft)





















      19-16
