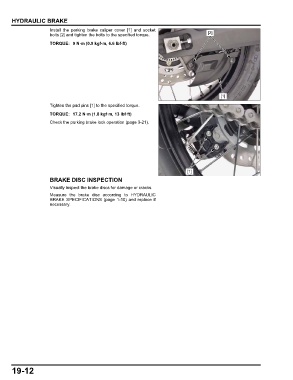

      HYDRAULIC BRAKE
                      Install the parking brake caliper cover [1] and socket
                      bolts [2] and tighten the bolts to the specified torque.          [2]

                      TORQUE:  9 N·m (0.9 kgf·m, 6.6 lbf·ft)











                                                                                             [1]

                      Tighten the pad pins [1] to the specified torque.
                      TORQUE:  17.2 N·m (1.8 kgf·m, 13 lbf·ft)
                      Check the parking brake lock operation (page 3-21).











                                                                               [1]
                      BRAKE DISC INSPECTION
                      Visually inspect the brake discs for damage or cracks.
                      Measure the brake disc according  to  HYDRAULIC
                      BRAKE SPECIFICATIONS (page 1-10) and replace if
                      necessary.








































      19-12
