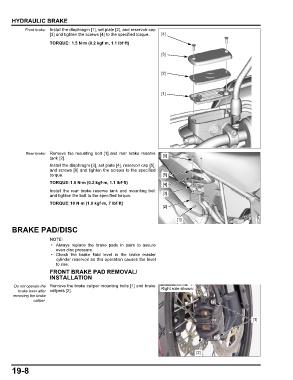

HYDRAULIC BRAKE
Front brake: Install the diaphragm [1], set plate [2], and reservoir cap
[3] and tighten the screws [4] to the specified torque. [4]

TORQUE: 1.5 N·m (0.2 kgf·m, 1.1 lbf·ft)

[3]

[2]

[1]

Rear brake: Remove the mounting bolt [1] and rear brake reserve [6]
tank [2].
Install the diaphragm [3], set plate [4], reservoir cap [5],
and screws [6] and tighten the screws to the specified
torque. [5]
TORQUE:1.5 N·m (0.2 kgf·m, 1.1 lbf·ft) [4]
Install the rear brake reserve tank and mounting bolt [3]
and tighten the bolt to the specified torque.
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)
[2]

[1]

BRAKE PAD/DISC

• Always replace the brake pads in pairs to assure
even disc pressure.
• Check the brake fluid level in the brake master
cylinder reservoir as this operation causes the level
to rise.
FRONT BRAKE PAD REMOVAL/
INSTALLATION
Do not operate the Remove the brake caliper mounting bolts [1] and brake Right side shown:
brake lever after calipers [2].
removing the brake
caliper.

[1]

[2]

19-8
