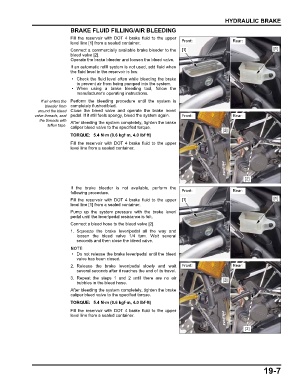

                                                                                               HYDRAULIC BRAKE
                               BRAKE FLUID FILLING/AIR BLEEDING
                               Fill the reservoir with DOT 4  brake fluid to the  upper
                               level line [1] from a sealed container.       Front:               Rear:
                               Connect a commercially available brake bleeder to the  [1]                          [1]
                               bleed valve [2].
                               Operate the brake bleeder and loosen the bleed valve.
                               If an automatic refill system is not used, add fluid when
                               the fluid level in the reservoir is low.
                                • Check the fluid level often while bleeding the brake
                                 to prevent air from being pumped into the system.
                                • When using a brake bleeding tool, follow the
                                 manufacturer’s operating instructions.
                  If air enters the  Perform the  bleeding procedure until the  system is
                    bleeder from  completely flushed/bled.
                 around the bleed  Close the  bleed valve and operate the brake lever/
               valve threads, seal  pedal. If it still feels spongy, bleed the system again.  Front:  Rear:
                  the threads with  After bleeding the system completely, tighten the brake
                     teflon tape.
                               caliper bleed valve to the specified torque.
                                                                                              [2]
                               TORQUE:  5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
                               Fill the reservoir with DOT 4  brake fluid to the  upper
                               level line from a sealed container.






                                                                                                       [2]
                               If the brake bleeder is not available, perform the  Front:         Rear:
                               following procedure.
                               Fill the reservoir with DOT 4  brake fluid to the  upper  [1]                       [1]
                               level line [1] from a sealed container.
                               Pump up the system pressure with the brake lever/
                               pedal until the lever/pedal resistance is felt.
                               Connect a bleed hose to the bleed valve [2].
                               1. Squeeze the brake lever/pedal all the way and
                                 loosen the bleed valve 1/4 turn. Wait several
                                 seconds and then close the bleed valve.


                                • Do not release the brake lever/pedal until the bleed
                                 valve has been closed.
                               2. Release the brake lever/pedal slowly and wait  Front:           Rear:
                                 several seconds after it reaches the end of its travel.
                               3. Repeat  the steps 1  and 2 until there are no air           [2]
                                 bubbles in the bleed hose.
                               After bleeding the system completely, tighten the brake
                               caliper bleed valve to the specified torque.
                               TORQUE:  5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
                               Fill the reservoir with DOT 4  brake fluid to the  upper
                               level line from a sealed container.

                                                                                                       [2]
