                                                                                               HYDRAULIC BRAKE

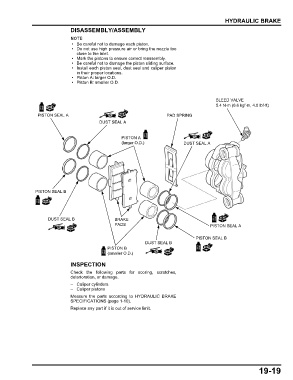

                               DISASSEMBLY/ASSEMBLY


                                • Be careful not to damage each piston.
                                • Do not use high pressure air or bring the nozzle too
                                 close to the inlet.
                                • Mark the pistons to ensure correct reassembly.
                                • Be careful not to damage the piston sliding surface.
                                • Install each piston seal, dust seal and caliper piston
                                 in their proper locations.
                                • Piston A: larger O.D.
                                • Piston B: smaller O.D.



                                                                                           BLEED VALVE
                                                                                           5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
                 PISTON SEAL A                                         PAD SPRING
                                           DUST SEAL A


                                                    PISTON A
                                                    (larger O.D.)             DUST SEAL A










                PISTON SEAL B





                     DUST SEAL B                 BRAKE
                                                 PADS                                    PISTON SEAL A

                                                                                   PISTON SEAL B
                                                              DUST SEAL B
                                              PISTON B
                                              (smaller O.D.)

                               INSPECTION
                               Check the following  parts  for scoring,  scratches,
                               deterioration, or damage.
                               – Caliper cylinders
                               – Caliper pistons
                               Measure the parts according to HYDRAULIC  BRAKE
                               SPECIFICATIONS (page 1-10).
                               Replace any part if it is out of service limit.













                                                                                                             19-19
