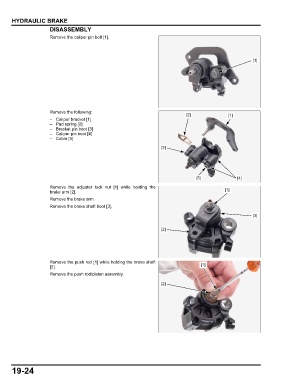

      HYDRAULIC BRAKE
                      DISASSEMBLY
                      Remove the caliper pin bolt [1].




                                                                                                           [1]












                      Remove the following:
                                                                               [2]              [1]
                      – Caliper bracket [1]
                      – Pad spring [2]
                      – Bracket pin boot [3]
                      – Caliper pin boot [4]
                      –Collar [5]
                                                                    [3]






                                                                                   [5]              [4]
                      Remove the  adjuster lock  nut [1] while  holding the
                      brake arm [2].                                                           [1]
                      Remove the brake arm.
                      Remove the brake shaft boot [3].

                                                                                                           [3]

                                                                    [2]







                      Remove the push rod [1] while holding the brake shaft
                      [2].                                                           [1]
                      Remove the push rod/piston assembly.
                                                                    [2]
                                                                    [2]



















      19-24
