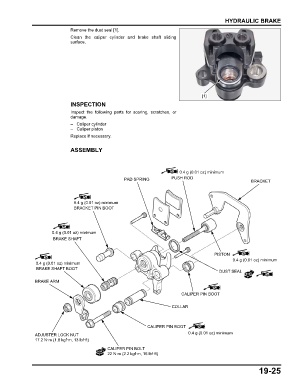

HYDRAULIC BRAKE
Remove the dust seal [1].
Clean the caliper cylinder and brake shaft sliding
surface.

[1]
INSPECTION

Inspect the following parts for scoring, scratches, or
damage.
– Caliper cylinder
– Caliper piston
Replace if necessary.

ASSEMBLY

0.4 g (0.01 oz) minimum
PAD SPRING PUSH ROD BRACKET

0.4 g (0.01 oz) minimum
BRACKET PIN BOOT

0.4 g (0.01 oz) minimum
BRAKE SHAFT

PISTON
0.4 g (0.01 oz) minimum
0.4 g (0.01 oz) minimum
BRAKE SHAFT BOOT
DUST SEAL

BRAKE ARM

CALIPER PIN BOOT

COLLAR

CALIPER PIN BOOT

ADJUSTER LOCK NUT 0.4 g (0.01 oz) minimum
17.2 N·m (1.8 kgf·m, 13 lbf·ft)
CALIPER PIN BOLT
22 N·m (2.2 kgf·m, 16 lbf·ft)

19-25
