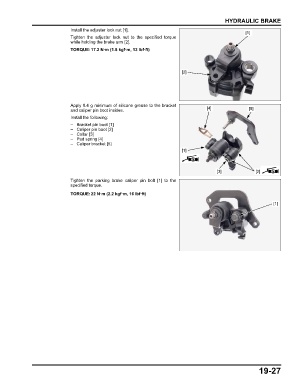

HYDRAULIC BRAKE
Install the adjuster lock nut [1].
[1]
Tighten the adjuster lock nut to the specified torque
while holding the brake arm [2].
TORQUE: 17.2 N·m (1.8 kgf·m, 13 lbf·ft)

[2]

Apply 0.4 g minimum of silicone grease to the bracket
and caliper pin boot insides. [4] [5]
Install the following:
– Bracket pin boot [1]
– Caliper pin boot [2]
–Collar [3]
– Pad spring [4]
– Caliper bracket [5]
[1]

[3] [2]
Tighten the parking brake caliper pin bolt [1] to the
specified torque.
TORQUE: 22 N·m (2.2 kgf·m, 16 lbf·ft)
[1]

19-27
