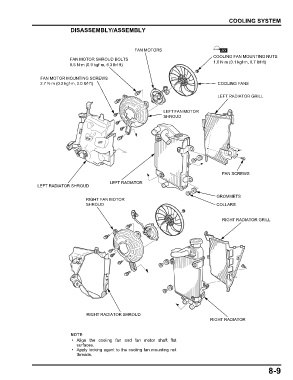

COOLING SYSTEM
DISASSEMBLY/ASSEMBLY
FAN MOTORS
COOLING FAN MOUNTING NUTS
FAN MOTOR SHROUD BOLTS 1.0 N·m (0.1 kgf·m, 0.7 lbf·ft)
8.5 N·m (0.9 kgf·m, 6.3 lbf·ft)
FAN MOTOR MOUNTING SCREWS
2.7 N·m (0.3 kgf·m, 2.0 lbf·ft) COOLING FANS
LEFT RADIATOR GRILL
LEFT FAN MOTOR
SHROUD
PAN SCREWS
LEFT RADIATOR
LEFT RADIATOR SHROUD
GROMMETS
RIGHT FAN MOTOR
SHROUD COLLARS
RIGHT RADIATOR GRILL
RIGHT RADIATOR SHROUD
RIGHT RADIATOR
• Align the cooling fan and fan motor shaft flat
surfaces.
• Apply locking agent to the cooling fan mounting nut
threads.
8-9
