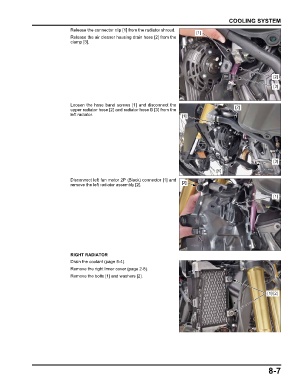

COOLING SYSTEM
Release the connector clip [1] from the radiator shroud.
[1]
Release the air cleaner housing drain hose [2] from the
clamp [3].
[2]
[3]
Loosen the hose band screws [1] and disconnect the [2]
upper radiator hose [2] and radiator hose B [3] from the
left radiator. [1]
[3]
[1]
Disconnect left fan motor 2P (Black) connector [1] and
remove the left radiator assembly [2]. [2]
[1]
RIGHT RADIATOR
Drain the coolant (page 8-4).
Remove the right Inner cover (page 2-8).
Remove the bolts [1] and washers [2].
[1]/[2]
