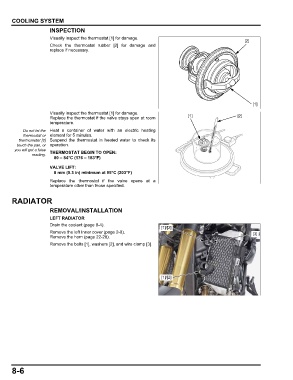

COOLING SYSTEM
INSPECTION
Visually inspect the thermostat [1] for damage.
[2]
Check the thermostat rubber [2] for damage and
replace if necessary.

[1]

Visually inspect the thermostat [1] for damage.
Replace the thermostat if the valve stays open at room [1] [2]
temperature.

Do not let the Heat a container of water with an electric heating
thermostat or element for 5 minutes.
thermometer [2] Suspend the thermostat in heated water to check its
touch the pan, or operation.
you will get a false THERMOSTAT BEGIN TO OPEN:
reading.
80 – 84°C (176 – 183°F)
VALVE LIFT:
8 mm (0.3 in) minimum at 95°C (203°F)
Replace the thermostat if the valve opens at a
temperature other than those specified.

RADIATOR

REMOVAL/INSTALLATION
LEFT RADIATOR
Drain the coolant (page 8-4).
[1]/[2]
Remove the left Inner cover (page 2-8). [3]
Remove the horn (page 22-28).
Remove the bolts [1], washers [2], and wire clamp [3].

[1]/[2]

8-6
