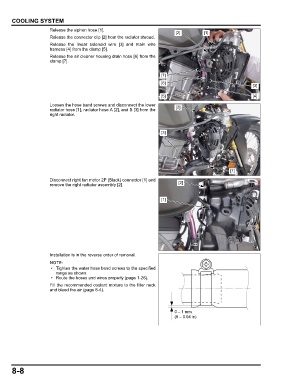

COOLING SYSTEM
Release the siphon hose [1].
[2] [1]
Release the connector clip [2] from the radiator shroud.
Release the linear solenoid wire [3] and main wire
harness [4] from the clamp [5].
Release the air cleaner housing drain hose [6] from the
clamp [7].

[7]
[6]
[3]
[5] [4]

Loosen the hose band screws and disconnect the lower [2]
radiator hose [1], radiator hose A [2], and B [3] from the
right radiator.

[3]

[1]
Disconnect right fan motor 2P (Black) connector [1] and
remove the right radiator assembly [2]. [2]

[1]

Installation is in the reverse order of removal.

• Tighten the water hose band screws to the specified
range as shown.
• Route the hoses and wires properly (page 1-26).
Fill the recommended coolant mixture to the filler neck
and bleed the air (page 8-4).

0 – 1 mm
(0 – 0.04 in)

8-8
