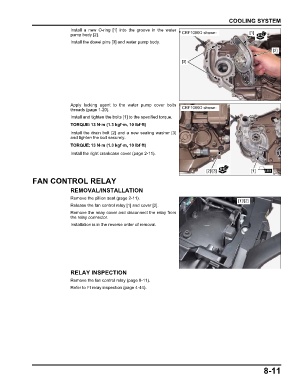

COOLING SYSTEM
Install a new O-ring [1] into the groove in the water
pump body [2]. CRF1000D shown: [1]
Install the dowel pins [3] and water pump body.
[2]

[3]

Apply locking agent to the water pump cover bolts
threads (page 1-20). CRF1000D shown:
Install and tighten the bolts [1] to the specified torque.
TORQUE:13 N·m (1.3 kgf·m, 10 lbf·ft)
Install the drain bolt [2] and a new sealing washer [3]
and tighten the bolt securely.
TORQUE:13 N·m (1.3 kgf·m, 10 lbf·ft)
Install the right crankcase cover (page 2-11).

[2]/[3] [1]
FAN CONTROL RELAY

REMOVAL/INSTALLATION
Remove the pillion seat (page 2-11).
[1]/[2]
Release the fan control relay [1] and cover [2].
Remove the relay cover and disconnect the relay from
the relay connector.
Installation is in the reverse order of removal.

RELAY INSPECTION
Remove the fan control relay (page 8-11).
Refer to FI relay inspection (page 4-44).
