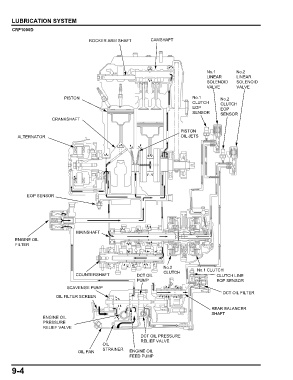

LUBRICATION SYSTEM
CRF1000D

ROCKER ARM SHAFT CAMSHAFT

No.1 No.2
LINEAR LINEAR
SOLENOID SOLENOID
VALVE VALVE

PISTON No.1 No.2
CLUTCH CLUTCH
EOP EOP
SENSOR SENSOR
CRANKSHAFT

PISTON
ALTERNATOR OIL JETS

EOP SENSOR

MAINSHAFT
ENGINE OIL
FILTER

No.2
CLUTCH No.1 CLUTCH
COUNTERSHAFT DCT OIL CLUTCH LINE
PUMP EOP SENSOR
SCAVENGE PUMP
DCT OIL FILTER
OIL FILTER SCREEN

REAR BALANCER
SHAFT
ENGINE OIL
PRESSURE
RELIEF VALVE
DCT OIL PRESSURE
RELIEF VALVE
OIL
STRAINER
OIL PAN ENGINE OIL
FEED PUMP
