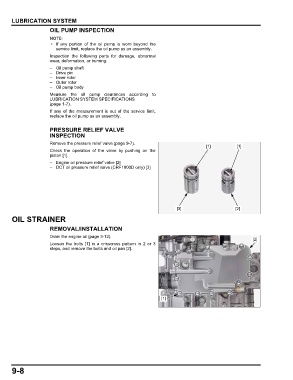

LUBRICATION SYSTEM
OIL PUMP INSPECTION

• If any portion of the oil pump is worn beyond the
service limit, replace the oil pump as an assembly.
Inspection the following parts for damage, abnormal
wear, deformation, or burning:
– Oil pump shaft
– Drive pin
– Inner rotor
– Outer rotor
– Oil pump body
Measure the oil pump clearances according to
LUBRICATION SYSTEM SPECIFICATIONS
(page 1-7).
If any of the measurement is out of the service limit,
replace the oil pump as an assembly.

PRESSURE RELIEF VALVE
INSPECTION

Remove the pressure relief valve (page 9-7).
[1] [1]
Check the operation of the valve by pushing on the
piston [1].
– Engine oil pressure relief valve [2]
– DCT oil pressure relief valve (CRF1000D only) [3]

[3] [2]
OIL STRAINER

REMOVAL/INSTALLATION
Drain the engine oil (page 3-12).
[2]
Loosen the bolts [1] in a crisscross pattern in 2 or 3
steps, and remove the bolts and oil pan [2].

[1]

9-8
