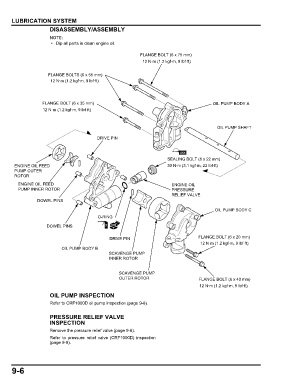

LUBRICATION SYSTEM
DISASSEMBLY/ASSEMBLY

• Dip all parts in clean engine oil.

FLANGE BOLT (6 x 75 mm)
12 N·m (1.2 kgf·m, 9 lbf·ft)

FLANGE BOLTS (6 x 55 mm)
12 N·m (1.2 kgf·m, 9 lbf·ft)

FLANGE BOLT (6 x 35 mm) OIL PUMP BODY A
12 N·m (1.2 kgf·m, 9 lbf·ft)

OIL PUMP SHAFT
DRIVE PIN

SEALING BOLT (6 x 22 mm)
ENGINE OIL FEED 30 N·m (3.1 kgf·m, 22 lbf·ft)
PUMP OUTER
ROTOR
ENGINE OIL FEED ENGINE OIL
PUMP INNER ROTOR PRESSURE
RELIEF VALVE
DOWEL PINS
OIL PUMP BODY C
O-RING
DOWEL PINS

DRIVE PIN FLANGE BOLT (6 x 20 mm)
12 N·m (1.2 kgf·m, 9 lbf·ft)
OIL PUMP BODY B
SCAVENGE PUMP
INNER ROTOR

SCAVENGE PUMP
OUTER ROTOR FLANGE BOLT (6 x 40 mm)
12 N·m (1.2 kgf·m, 9 lbf·ft)
OIL PUMP INSPECTION
Refer to CRF1000D oil pump inspection (page 9-8).

PRESSURE RELIEF VALVE
INSPECTION

Remove the pressure relief valve (page 9-6).
Refer to pressure relief valve (CRF1000D) inspection
(page 9-8).

9-6
