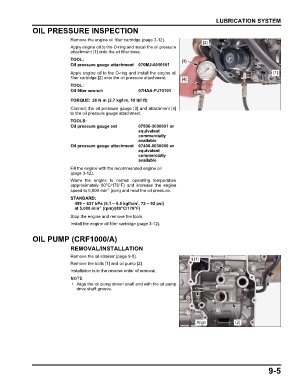

LUBRICATION SYSTEM
OIL PRESSURE INSPECTION

Remove the engine oil filter cartridge (page 3-12).
[2]
Apply engine oil to the O-ring and install the oil pressure
attachment [1] onto the oil filter boss.
TOOL: [3]
Oil pressure gauge attachment 070MJ-0010101
Apply engine oil to the O-ring and install the engine oil [1]
filter cartridge [2] onto the oil pressure attachment. [4]
TOOL:
Oil filter wrench 07HAA-PJ70101

TORQUE: 26 N·m (2.7 kgf·m, 19 lbf·ft)
Connect the oil pressure gauge [3] and attachment [4]
to the oil pressure gauge attachment.
TOOLS:
Oil pressure gauge set 07506-3000001 or
equivalent
commercially
available
Oil pressure gauge attachment 07406-0030000 or
equivalent
commercially
available
Fill the engine with the recommended engine oil
(page 3-12).
Warm the engine to normal operating temperature
(approximately 80°C/176°F) and increase the engine
-1
speed to 5,000 min (rpm) and read the oil pressure.
STANDARD:
499 – 637 kPa (5.1 – 6.5 kgf/cm , 72 – 92 psi)
2
at 5,000 min (rpm)/(80°C/176°F)
-1
Stop the engine and remove the tools.
Install the engine oil filter cartridge (page 3-12).

OIL PUMP (CRF1000/A)

REMOVAL/INSTALLATION
Remove the oil strainer (page 9-8).
[1]
Remove the bolts [1] and oil pump [2].
Installation is in the reverse order of removal.

• Align the oil pump driven shaft end with the oil pump
drive shaft groove.

Align [2]
