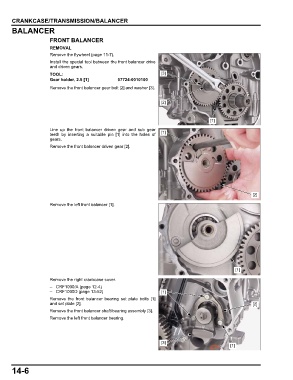

CRANKCASE/TRANSMISSION/BALANCER
BALANCER

FRONT BALANCER
REMOVAL
Remove the flywheel (page 11-7).
Install the special tool between the front balancer drive
and driven gears.
TOOL: [3]
Gear holder, 2.5 [1] 07724-0010100
Remove the front balancer gear bolt [2] and washer [3].

[2]

[1]
Line up the front balancer driven gear and sub gear
teeth by inserting a suitable pin [1] into the holes of [1]
gears.
Remove the front balancer driven gear [2].

[2]

Remove the left front balancer [1].

[1]
Remove the right crankcase cover.
– CRF1000/A (page 12-4)
– CRF1000D (page 13-52) [1]
Remove the front balancer bearing set plate bolts [1]
and set plate [2]. [2]
Remove the front balancer shaft/bearing assembly [3].
Remove the left front balancer bearing.

[3]
[1]

14-6
