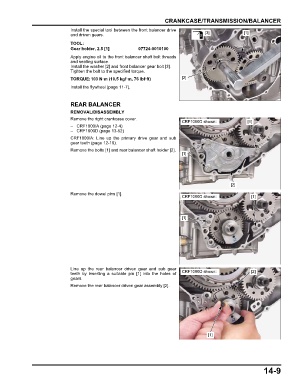

CRANKCASE/TRANSMISSION/BALANCER
Install the special tool between the front balancer drive
and driven gears. [3] [1]

TOOL:
Gear holder, 2.5 [1] 07724-0010100
Apply engine oil to the front balancer shaft bolt threads
and seating surface.
Install the washer [2] and front balancer gear bolt [3].
Tighten the bolt to the specified torque.
TORQUE:103 N·m (10.5 kgf·m, 76 lbf·ft) [2]
Install the flywheel (page 11-7).

REAR BALANCER

REMOVAL/DISASSEMBLY
Remove the right crankcase cover.
CRF1000D shown: [1]
– CRF1000/A (page 12-4)
– CRF1000D (page 13-52)
CRF1000/A: Line up the primary drive gear and sub
gear teeth (page 12-10).
Remove the bolts [1] and rear balancer shaft holder [2].
[1]

[2]
Remove the dowel pins [1].
CRF1000D shown: [1]

[1]

Line up the rear balancer driven gear and sub gear
teeth by inserting a suitable pin [1] into the holes of CRF1000D shown: [2]
gears.
Remove the rear balancer driven gear assembly [2].

[1]

14-9
