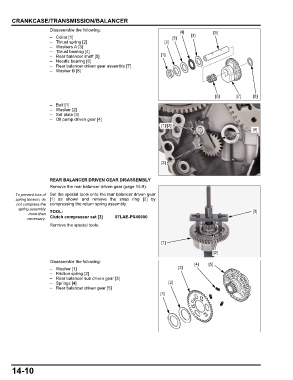

CRANKCASE/TRANSMISSION/BALANCER
Disassemble the following: [4] [5]
–Collar [1] [3] [3]
– Thrust spring [2] [2]
– Washers A [3]
– Thrust bearing [4]
– Rear balancer shaft [5] [1]
– Needle bearing [6]
– Rear balancer driven gear assembly [7]
–Washer B [8]

[6] [7] [8]

– Bolt [1]
–Washer [2]
– Set plate [3]
– Oil pump driven gear [4]
[1]/[2]
[4]

[3]

REAR BALANCER DRIVEN GEAR DISASSEMBLY
Remove the rear balancer driven gear (page 14-9).
To prevent loss of Set the special tools onto the rear balancer driven gear
spring tension, do [1] as shown and remove the snap ring [2] by
not compress the compressing the return spring assembly.
spring assembly TOOL: [3]
more than
necessary. Clutch compressor set [3] 07LAE-PX40000
Remove the special tools.

[1]
[2]

Disassemble the following: [4] [5]
–Washer [1] [3]
– Friction spring [2]
– Rear balancer sub driven gear [3]
– Springs [4] [2]
– Rear balancer driven gear [5]
[1]

14-10
