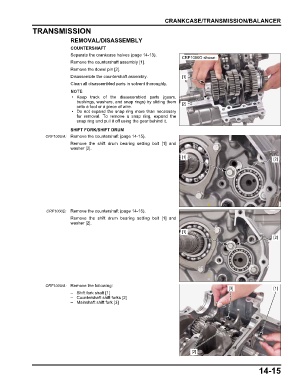

Page 369 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

CRANKCASE/TRANSMISSION/BALANCER
TRANSMISSION

REMOVAL/DISASSEMBLY
COUNTERSHAFT
Separate the crankcase halves (page 14-13).
CRF1000D shown:
Remove the countershaft assembly [1].
Remove the dowel pin [2].
Disassemble the countershaft assembly. [1]
Clean all disassembled parts in solvent thoroughly.

• Keep track of the disassembled parts (gears,
bushings, washers, and snap rings) by sliding them [2]
onto a tool or a piece of wire.
• Do not expand the snap ring more than necessary
for removal. To remove a snap ring, expand the
snap ring and pull it off using the gear behind it.
SHIFT FORK/SHIFT DRUM
CRF1000/A: Remove the countershaft (page 14-15).
Remove the shift drum bearing setting bolt [1] and
washer [2].
[1]
[2]

CRF1000D: Remove the countershaft (page 14-15).
Remove the shift drum bearing setting bolt [1] and
washer [2].
[1]
[2]

CRF1000/A: Remove the following:
[3] [1]
– Shift fork shaft [1]
– Countershaft shift forks [2]
– Mainshaft shift fork [3]

[2]

14-15
