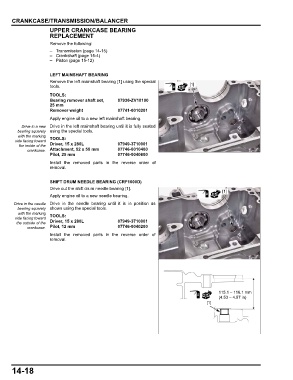

CRANKCASE/TRANSMISSION/BALANCER
UPPER CRANKCASE BEARING
REPLACEMENT

Remove the following:
– Transmission (page 14-15)
– Crankshaft (page 15-4)
– Piston (page 15-12)

LEFT MAINSHAFT BEARING
Remove the left mainshaft bearing [1] using the special
tools. [1]
TOOLS:
Bearing remover shaft set, 07936-ZV10100
25 mm
Remover weight 07741-0010201
Apply engine oil to a new left mainshaft bearing.
Drive in a new Drive in the left mainshaft bearing until it is fully seated
bearing squarely using the special tools.
with the marking
side facing toward TOOLS:
the inside of the Driver, 15 x 280L 07949-3710001
crankcase. Attachment, 52 x 55 mm 07746-0010400
Pilot, 25 mm 07746-0040600
Install the removed parts in the reverse order of
removal.

SHIFT DRUM NEEDLE BEARING (CRF1000D)
Drive out the shift drum needle bearing [1].
[1]
Apply engine oil to a new needle bearing.
Drive in the needle Drive in the needle bearing until it is in position as
bearing squarely shown using the special tools.
with the marking
side facing toward TOOLS:
the outside of the Driver, 15 x 280L 07949-3710001
crankcase. Pilot, 12 mm 07746-0040200
Install the removed parts in the reverse order of
removal.

115.1 – 116.1 mm
(4.53 – 4.57 in)
[1]

14-18
