CRANKCASE/TRANSMISSION/BALANCER

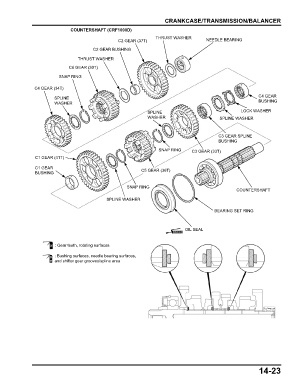

COUNTERSHAFT (CRF1000D)
THRUST WASHER
C2 GEAR (37T) NEEDLE BEARING
C2 GEAR BUSHING

THRUST WASHER
C6 GEAR (30T)
SNAP RING

C4 GEAR (34T)
C4 GEAR
SPLINE
WASHER BUSHING

SPLINE LOCK WASHER
WASHER SPLINE WASHER

C3 GEAR SPLINE
BUSHING
SNAP RING C3 GEAR (33T)
C1 GEAR (41T)

C1 GEAR C5 GEAR (36T)
BUSHING

SNAP RING
COUNTERSHAFT
SPLINE WASHER

BEARING SET RING

OIL SEAL

: Gear teeth, rotating surfaces

: Bushing surfaces, needle bearing surfaces,
and shifter gear grooves/spline area
