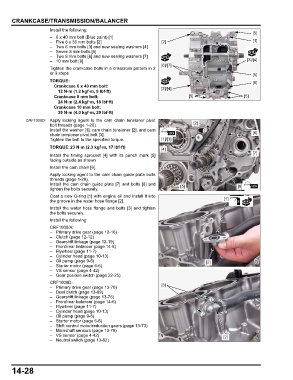

      CRANKCASE/TRANSMISSION/BALANCER
                      Install the following:
                                                                                                           [5]
                      – 6 x 40 mm bolt (Blue paint) [1]
                      – Five 6 x 35 mm bolts [2]                    [2]                                    [1]
                      – Two 6 mm bolts [3] and new sealing washers [4]
                      – Seven 8 mm bolts [5]
                      – Two 8 mm bolts [6] and new sealing washers [7]
                      – 10 mm bolt [8]                                                                  [3]/[4]
                                                                    [6]/[7]
                      Tighten the crankcase bolts in a crisscross pattern in 2
                      or 3 steps.                                                                          [5]
                      TORQUE:                                                                              [8]
                        Crankcase 6 x 40 mm bolt:
                         12 N·m (1.2 kgf·m, 9 lbf·ft)               [3]/[4]
                        Crankcase 8 mm bolt:                                    [5]                    [5]
                         24 N·m (2.4 kgf·m, 18 lbf·ft)
                        Crankcase 10 mm bolt:
                         39 N·m (4.0 kgf·m, 29 lbf·ft)
            CRF1000D: Apply locking agent  to the  cam  chain tensioner  pivot
                      bolt threads (page 1-20).                                   [2]
                      Install the washer [1], cam chain tensioner [2], and cam
                      chain tensioner pivot bolt [3].                                                      [6]
                      Tighten the bolt to the specified torque.     [1]/[3]
                      TORQUE:23 N·m (2.3 kgf·m, 17 lbf·ft)          [4]
                      Install  the timing sprocket  [4] with its punch  mark  [5]                          [7]
                      facing outside as shown
                      Install the cam chain [6].
                      Apply locking agent to the cam chain guide plate bolts
                      threads (page 1-20).
                      Install the cam chain guide plate [7] and bolts [8] and  [5]                  [8]
                      tighten the bolts securely.
                      Coat a new O-ring [1] with engine oil and install it into
                      the groove in the water hose flange [2].                                 [1]
                      Install the water hose flange and bolts [3] and tighten
                      the bolts securely.
                      Install the following:
                      CRF1000/A:
                      – Primary drive gear (page 12-16)
                      – Clutch (page 12-12)
                      – Gearshift linkage (page 12-19)
                      – Front/rear balancer (page 14-6)
                      – Flywheel (page 11-7)
                      – Cylinder head (page 10-13)
                      – Oil pump (page 9-5)                                            [2]
                      – Starter motor (page 6-5)
                      – VS sensor (page 4-42)
                      – Gear position switch (page 22-25)
                      CRF1000D:                                     [3]
                      – Primary drive gear (page 13-70)
                      – Dual clutch (page 13-69)
                      – Gearshift linkage (page 13-76)
                      – Front/rear balancer (page 14-6)
                      – Flywheel (page 11-7)
                      – Cylinder head (page 10-13)
                      – Oil pump (page 9-5)
                      – Starter motor (page 6-5)
                      – Shift control motor/reduction gears (page 13-73)
                      – Mainshaft sensors (page 13-78)
                      – VS sensor (page 4-42)                                                 [2]
                      – Neutral switch (page 13-82)
