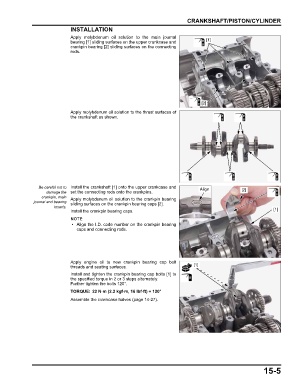

                                                                               CRANKSHAFT/PISTON/CYLINDER
                               INSTALLATION
                               Apply molybdenum  oil solution to  the main journal
                               bearing [1] sliding surfaces on the upper crankcase and  [1]
                               crankpin bearing [2] sliding surfaces on the connecting
                               rods.











                                                                                     [2]

                               Apply molybdenum oil solution to the thrust surfaces of
                               the crankshaft as shown.
















                 Be careful not to Install the crankshaft [1] onto the upper crankcase and  Align
                    damage the set the connecting rods onto the crankpins.                            [2]
                  crankpin, main  Apply molybdenum oil solution to the crankpin bearing
               journal and bearing  sliding surfaces on the crankpin bearing caps [2].
                        inserts.                                                                                   [1]
                               Install the crankpin bearing caps.


                                • Align the I.D. code number on the crankpin bearing
                                 caps and connecting rods.







                               Apply  engine oil to new crankpin bearing cap bolt
                               threads and seating surfaces.                      [1]
                               Install and tighten the crankpin bearing cap bolts [1] to
                               the specified torque in 2 or 3 steps alternately.
                               Further tighten the bolts 120°.
                               TORQUE: 22 N·m (2.2 kgf·m, 16 lbf·ft) + 120°
                               Assemble the crankcase halves (page 14-27).
















                                                                                                               15-5
