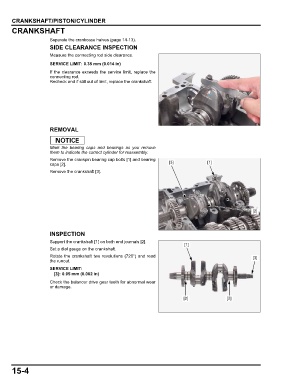

      CRANKSHAFT/PISTON/CYLINDER
      CRANKSHAFT

                      Separate the crankcase halves (page 14-13).
                      SIDE CLEARANCE INSPECTION
                      Measure the connecting rod side clearance.
                      SERVICE LIMIT: 0.35 mm (0.014 in)
                      If the clearance exceeds the service limit, replace the
                      connecting rod.
                      Recheck and if still out of limit, replace the crankshaft.










                      REMOVAL



                      Mark the bearing caps and  bearings  as  you  remove
                      them to indicate the correct cylinder for reassembly.
                      Remove the crankpin bearing cap bolts [1] and bearing
                      caps [2].                                         [3]             [1]
                      Remove the crankshaft [3].








                                                                                                           [2]




                      INSPECTION
                      Support the crankshaft [1] on both end journals [2].
                                                                              [1]
                                                                              [1]
                      Set a dial gauge on the crankshaft.
                      Rotate the crankshaft two revolutions (720°) and read                                [3]
                      the runout.
                      SERVICE LIMIT:
                        [3]: 0.05 mm (0.002 in)
                      Check the balancer drive gear teeth for abnormal wear
                      or damage.

                                                                              [2]               [2]
















      15-4
