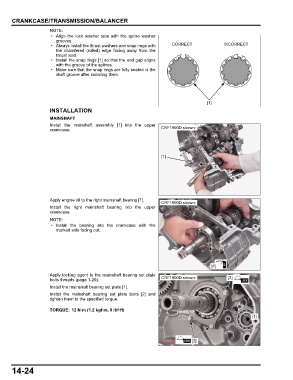

Page 378 - 2019 SHOP MANUAL CRF1000/A/D

du
dummyheadmmyhead

CRANKCASE/TRANSMISSION/BALANCER

• Align the lock washer tabs with the spline washer
grooves.
• Always install the thrust washers and snap rings with CORRECT INCORRECT
the chamfered (rolled) edge facing away from the
thrust load.
• Install the snap rings [1] so that the end gap aligns
with the groove of the splines.
• Make sure that the snap rings are fully seated in the
shaft groove after installing them.

[1]
INSTALLATION
MAINSHAFT
Install the mainshaft assembly [1] into the upper
crankcase. CRF1000D shown:

[1]

Apply engine oil to the right mainshaft bearing [1].
CRF1000D shown:
Install the right mainshaft bearing into the upper
crankcase.

• Install the bearing into the crankcase with the
marked side facing out.

[1]
Apply locking agent to the mainshaft bearing set plate
bolts threads (page 1-20). CRF1000D shown: [2]
Install the mainshaft bearing set plate [1].
Install the mainshaft bearing set plate bolts [2] and
tighten them to the specified torque.

TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
[1]

[2]

14-24
