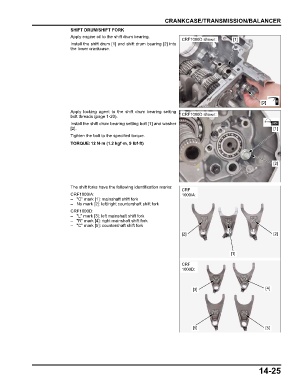

CRANKCASE/TRANSMISSION/BALANCER
SHIFT DRUM/SHIFT FORK
Apply engine oil to the shift drum bearing.
CRF1000D shown: [1]
Install the shift drum [1] and shift drum bearing [2] into
the lower crankcase.

[2]
Apply locking agent to the shift drum bearing setting
bolt threads (page 1-20). CRF1000D shown:
Install the shift drum bearing setting bolt [1] and washer
[2]. [1]
Tighten the bolt to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

[2]

The shift forks have the following identification marks:
CRF
CRF1000/A: 1000/A:
– "C" mark [1]: mainshaft shift fork
– No mark [2]: left/right countershaft shift fork
CRF1000D:
– "L" mark [3]: left mainshaft shift fork
– "R" mark [4]: right mainshaft shift fork
– "C" mark [5]: countershaft shift fork
[2] [2]

[1]
CRF
1000D:

[3] [4]

[5] [5]

14-25
