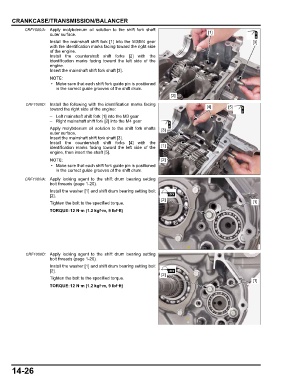

CRANKCASE/TRANSMISSION/BALANCER
CRF1000/A: Apply molybdenum oil solution to the shift fork shaft [1]
outer surface.
Install the mainshaft shift fork [1] into the M3/M4 gear [3]
with the identification marks facing toward the right side
of the engine.
Install the countershaft shift forks [2] with the
identification marks facing toward the left side of the
engine.
Insert the mainshaft shift fork shaft [3].

• Make sure that each shift fork guide pin is positioned
in the correct guide grooves of the shift drum.
[2]
CRF1000D: Install the following with the identification marks facing
toward the right side of the engine: [4] [5]
– Left mainshaft shift fork [1] into the M3 gear
– Right mainshaft shift fork [2] into the M4 gear
Apply molybdenum oil solution to the shift fork shafts [3]
outer surface.
Insert the mainshaft shift fork shaft [3].
Install the countershaft shift forks [4] with the
identification marks facing toward the left side of the [1]
engine, then insert the shaft [5].
[2]
• Make sure that each shift fork guide pin is positioned
in the correct guide grooves of the shift drum.
CRF1000/A: Apply locking agent to the shift drum bearing setting
bolt threads (page 1-20).
Install the washer [1] and shift drum bearing setting bolt
[2].
[2]
Tighten the bolt to the specified torque. [1]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

CRF1000D: Apply locking agent to the shift drum bearing setting
bolt threads (page 1-20).
Install the washer [1] and shift drum bearing setting bolt
[2].
[2]
Tighten the bolt to the specified torque.
[1]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
