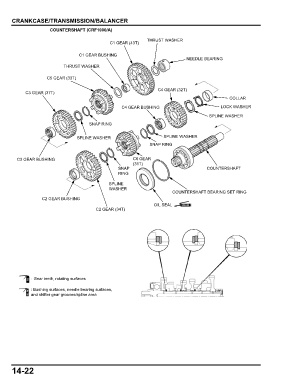

CRANKCASE/TRANSMISSION/BALANCER
COUNTERSHAFT (CRF1000/A)

THRUST WASHER
C1 GEAR (43T)

C1 GEAR BUSHING
NEEDLE BEARING
THRUST WASHER

C5 GEAR (33T)

C4 GEAR (32T)
C3 GEAR (37T)
COLLAR
C4 GEAR BUSHING LOCK WASHER

SPLINE WASHER
SNAP RING

SPLINE WASHER SPLINE WASHER
SNAP RING

C3 GEAR BUSHING C6 GEAR
(31T)
SNAP COUNTERSHAFT
RING
SPLINE
WASHER
COUNTERSHAFT BEARING SET RING
C2 GEAR BUSHING
OIL SEAL
C2 GEAR (34T)

: Gear teeth, rotating surfaces

: Bushing surfaces, needle bearing surfaces,
and shifter gear grooves/spline area
