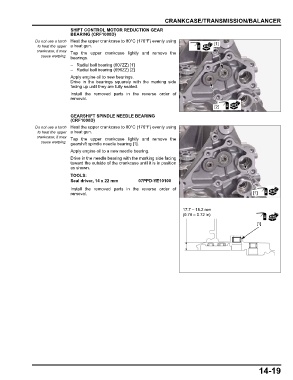

CRANKCASE/TRANSMISSION/BALANCER
SHIFT CONTROL MOTOR REDUCTION GEAR
BEARING (CRF1000D)
Do not use a torch Heat the upper crankcase to 80°C (176°F) evenly using
to heat the upper a heat gun. [1]
crankcase; it may Tap the upper crankcase lightly and remove the
cause warping. bearings.
– Radial ball bearing (607ZZ) [1]
– Radial ball bearing (696ZZ) [2]
Apply engine oil to new bearings.
Drive in the bearings squarely with the marking side
facing up until they are fully seated.
Install the removed parts in the reverse order of
removal.
[2]

GEARSHIFT SPINDLE NEEDLE BEARING
(CRF1000D)
Do not use a torch Heat the upper crankcase to 80°C (176°F) evenly using
to heat the upper a heat gun.
crankcase; it may Tap the upper crankcase lightly and remove the
cause warping. gearshift spindle needle bearing [1].

Apply engine oil to a new needle bearing.
Drive in the needle bearing with the marking side facing
toward the outside of the crankcase until it is in position
as shown.
TOOLS:
Seal driver, 14 x 22 mm 07PPD-YE10100

Install the removed parts in the reverse order of
removal. [1]

17.7 – 18.2 mm
(0.70 – 0.72 in)

[1]

14-19
