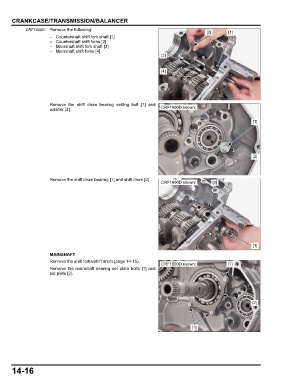

CRANKCASE/TRANSMISSION/BALANCER
CRF1000D: Remove the following:
[2] [1]
– Countershaft shift fork shaft [1]
– Countershaft shift forks [2]
– Mainshaft shift fork shaft [3]
– Mainshaft shift forks [4]
[3]
[4]
Remove the shift drum bearing setting bolt [1] and
washer [2]. CRF1000D shown:
[1]
[2]
Remove the shift drum bearing [1] and shift drum [2].
CRF1000D shown: [2]
[1]
MAINSHAFT
Remove the shift forks/shift drum (page 14-15).
CRF1000D shown: [1]
Remove the mainshaft bearing set plate bolts [1] and
set plate [2].
[2]
[1]
14-16
