CRANKCASE/TRANSMISSION/BALANCER
TRANSMISSION ASSEMBLY
Apply engine oil to the gear teeth, rotating surface and
bearing.
Apply molybdenum oil solution to the spline bushing
outer surface, bushing inner and outer surface, shift fork
grooves.
Assemble the mainshaft and countershaft.

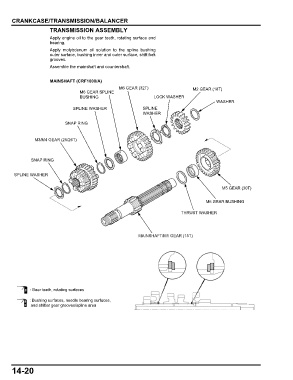

MAINSHAFT (CRF1000/A)
M6 GEAR (32T) M2 GEAR (18T)
M6 GEAR SPLINE
BUSHING LOCK WASHER
WASHER
SPLINE WASHER SPLINE
WASHER

SNAP RING

M3/M4 GEAR (25/26T)

SNAP RING

SPLINE WASHER

M5 GEAR (30T)

M5 GEAR BUSHING

THRUST WASHER

MAINSHAFT/M1 GEAR (15T)

: Gear teeth, rotating surfaces

: Bushing surfaces, needle bearing surfaces,
and shifter gear grooves/spline area

14-20
