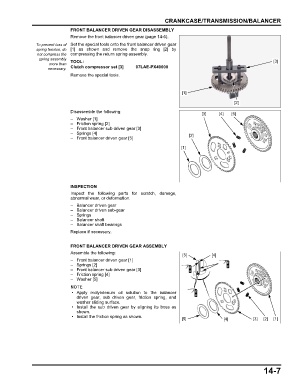

CRANKCASE/TRANSMISSION/BALANCER
FRONT BALANCER DRIVEN GEAR DISASSEMBLY
Remove the front balancer driven gear (page 14-6).
To prevent loss of Set the special tools onto the front balancer driven gear
spring tension, do [1] as shown and remove the snap ring [2] by
not compress the compressing the return spring assembly.
spring assembly TOOL: [3]
more than
necessary. Clutch compressor set [3] 07LAE-PX40000
Remove the special tools.

[1]
[2]
Disassemble the following:
[3] [4] [5]
–Washer [1]
– Friction spring [2]
– Front balancer sub driven gear [3]
– Springs [4] [2]
– Front balancer driven gear [5]

[1]

INSPECTION
Inspect the following parts for scratch, damage,
abnormal wear, or deformation.
– Balancer driven gear
– Balancer driven sub-gear
–Springs
– Balancer shaft
– Balancer shaft bearings
Replace if necessary.

FRONT BALANCER DRIVEN GEAR ASSEMBLY
Assemble the following:
[5] [4]
– Front balancer driven gear [1]
– Springs [2]
– Front balancer sub driven gear [3]
– Friction spring [4]
–Washer [5]

• Apply molybdenum oil solution to the balancer
driven gear, sub driven gear, friction spring, and
washer sliding surface.
• Install the sub driven gear by aligning its boss as
shown.
• Install the friction spring as shown.
[5] [4] [3] [2] [1]

14-7
