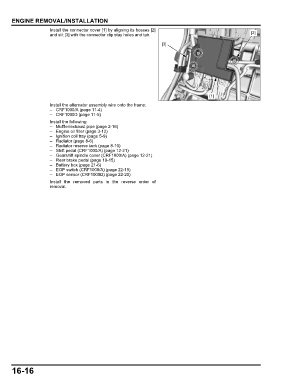

ENGINE REMOVAL/INSTALLATION
Install the connector cover [1] by aligning its bosses [2]
and slit [3] with the connector clip stay holes and tab. [2]

[3]

[1]

Install the alternator assembly wire onto the frame:
– CRF1000/A (page 11-4)
– CRF1000D (page 11-5)
Install the following:
– Muffler/exhaust pipe (page 2-16)
– Engine oil filter (page 3-12)
– Ignition coil tray (page 5-9)
– Radiator (page 8-6)
– Radiator reserve tank (page 8-10)
– Shift pedal (CRF1000/A) (page 12-21)
– Gearshift spindle cover (CRF1000/A) (page 12-21)
– Rear brake pedal (page 19-15)
– Battery box (page 21-6)
– EOP switch (CRF1000/A) (page 22-19)
– EOP sensor (CRF1000D) (page 22-20)
Install the removed parts in the reverse order of
removal.

16-16
