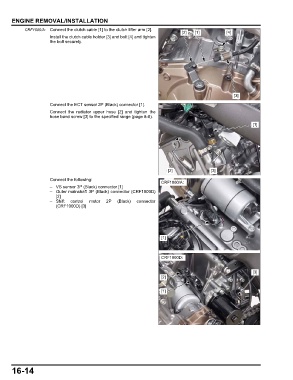

ENGINE REMOVAL/INSTALLATION
CRF1000/A: Connect the clutch cable [1] to the clutch lifter arm [2].
[2] [1] [4]
Install the clutch cable holder [3] and bolt [4] and tighten
the bolt securely.

[3]

Connect the ECT sensor 2P (Black) connector [1].
Connect the radiator upper hose [2] and tighten the
hose band screw [3] to the specified range (page 8-8).
[1]

[2] [3]
Connect the following:
CRF1000/A:
– VS sensor 3P (Black) connector [1]
– Outer mainshaft 3P (Black) connector (CRF1000D)
[2]
– Shift control motor 2P (Black) connector
(CRF1000D) [3]

[1]

CRF1000D:

[3]
[2]

[1]

16-14
