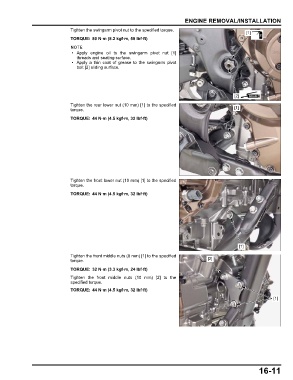

                                                                              ENGINE REMOVAL/INSTALLATION
                               Tighten the swingarm pivot nut to the specified torque.
                                                                                                        [1]
                               TORQUE: 80 N·m (8.2 kgf·m, 59 lbf·ft)


                                • Apply  engine  oil to the swingarm pivot nut  [1]
                                 threads and seating surface.
                                • Apply a  thin coat of grease  to the swingarm pivot
                                 bolt [2] sliding surface.





                                                                                                   [2]

                               Tighten the rear lower nut (10 mm) [1] to the specified
                               torque.                                                             [1]
                               TORQUE: 44 N·m (4.5 kgf·m, 32 lbf·ft)














                               Tighten the front lower nut (10 mm) [1] to the specified
                               torque.
                               TORQUE: 44 N·m (4.5 kgf·m, 32 lbf·ft)












                                                                                                     [1]
                               Tighten the front middle nuts (8 mm) [1] to the specified
                               torque.                                                  [2]

                               TORQUE: 32 N·m (3.3 kgf·m, 24 lbf·ft)
                               Tighten  the front  middle nuts (10 mm) [2] to  the
                               specified torque.
                               TORQUE: 44 N·m (4.5 kgf·m, 32 lbf·ft)
                                                                                                                   [1]
















                                                                                                             16-11
