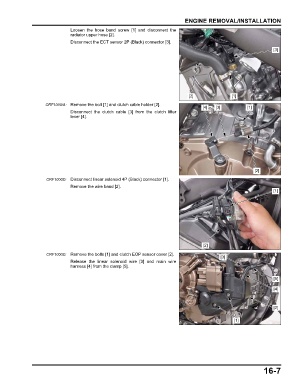

                                                                              ENGINE REMOVAL/INSTALLATION
                               Loosen the hose band screw  [1] and  disconnect the
                               radiator upper hose [2].
                               Disconnect the ECT sensor 2P (Black) connector [3].
                                                                                                                   [3]










                                                                                [2]               [1]

                    CRF1000/A: Remove the bolt [1] and clutch cable holder [2].
                                                                                      [4]  [3]          [1]
                               Disconnect the clutch cable [3] from the clutch lifter
                               lever [4].












                                                                                                           [2]
                    CRF1000D: Disconnect linear solenoid 4P (Black) connector [1].
                               Remove the wire band [2].
                                                                                                                   [1]












                                                                                      [2]

                    CRF1000D: Remove the bolts [1] and clutch EOP sensor cover [2].
                                                                                             [3]
                               Release  the linear  solenoid wire [3] and main wire
                               harness [4] from the clamp [5].

                                                                                                                   [5]

                                                                                                                   [4]



                                                                                                                   [2]

                                                                                                   [1]
