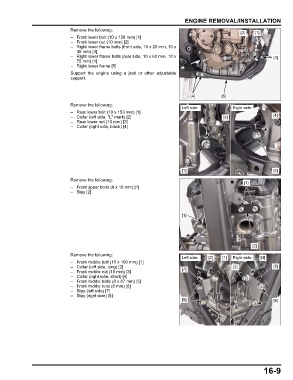

ENGINE REMOVAL/INSTALLATION
Remove the following:
[2] [1]
– Front lower bolt (10 x 138 mm) [1]
– Front lower nut (10 mm) [2]
– Right lower frame bolts (front side, 10 x 20 mm, 10 x
40 mm) [3]
– Right lower frame bolts (rear side, 10 x 60 mm, 10 x [3]
75 mm) [4]
– Right lower frame [5]
Support the engine using a jack or other adjustable
support.

[4] [5]

Remove the following:
Left side: Right side:
– Rear lower bolt (10 x 153 mm) [1]
– Collar (left side, "L" mark) [2] [2] [4]
– Rear lower nut (10 mm) [3]
– Collar (right side, black) [4]

[1] [3]
Remove the following:
[1]
– Front upper bolts (8 x 18 mm) [1]
–Stay [2]

[1]

[2]
Remove the following:
Left side: [2] [1] Right side: [4]
– Front middle bolt (10 x 100 mm) [1]
– Collar (left side, long) [2] [7] [3] [8]
– Front middle nut (10 mm) [3]
– Collar (right side, short) [4]
– Front middle bolts (8 x 87 mm) [5]
– Front middle nuts (8 mm) [6]
– Stay (left side) [7]
– Stay (right side) [8]
[5] [6]

16-9
