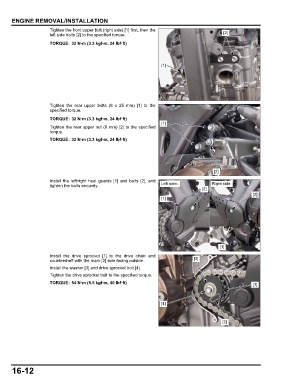

Page 408 - 2019 SHOP MANUAL CRF1000/A/D
P. 408

dummyheadmmyhead
             du

      ENGINE REMOVAL/INSTALLATION
                      Tighten the front upper bolt (right side) [1] first, then the
                      left side bolts [2] to the specified torque.                            [2]

                      TORQUE: 32 N·m (3.3 kgf·m, 24 lbf·ft)



                                                                    [1]









                      Tighten the  rear  upper bolts (8 x 25  mm)  [1] to  the
                      specified torque.
                      TORQUE: 32 N·m (3.3 kgf·m, 24 lbf·ft)
                                                                    [1]
                      Tighten the rear upper nut (8 mm) [2] to the specified
                      torque.
                      TORQUE: 32 N·m (3.3 kgf·m, 24 lbf·ft)






                                                                                          [2]
                      Install  the left/right heel guards [1] and bolts [2],  and
                      tighten the bolts securely.                   Left side:            Right side:
                                                                                     [2]
                                                                                                           [2]
                                                                    [1]











                                                                                             [1]
                      Install the drive sprocket [1] to the drive chain  and
                      countershaft with the mark [2] side facing outside.         [3]
                      Install the washer [3] and drive sprocket bolt [4].
                      Tighten the drive sprocket bolt to the specified torque.
                      TORQUE: 54 N·m (5.5 kgf·m, 40 lbf·ft)                                                [1]



                                                                    [4]



                                                                                              [2]










      16-12
