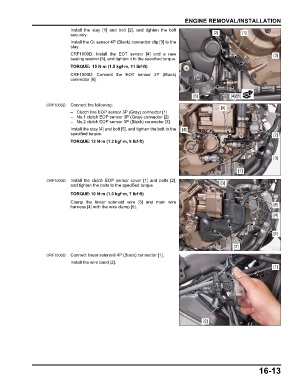

                                                                              ENGINE REMOVAL/INSTALLATION
                               Install the stay [1] and bolt [2], and tighten the bolt
                               securely.                                                  [2]         [1]
                               Install the O2 sensor 4P (Black) connector clip [3] to the
                               stay.
                               CRF1000D: Install  the  EOT sensor [4]  and a new                                   [3]
                               sealing washer [5], and tighten it to the specified torque.
                               TORQUE: 15 N·m (1.5 kgf·m, 11 lbf·ft)
                               CRF1000D: Connect the EOT sensor 2P (Black)
                               connector [6].


                                                                                  [6]            [4]/[5]

                    CRF1000D: Connect the following:
                                                                                             [5]
                               – Clutch line EOP sensor 3P (Gray) connector [1]
                               – No.1 clutch EOP sensor 3P (Gray) connector [2]
                               – No.2 clutch EOP sensor 3P (Black) connector [3]
                               Install the stay [4] and bolt [5], and tighten the bolt to the  [4]
                               specified torque.                                                                   [2]
                               TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)


                                                                                                                   [3]


                                                                                                     [1]
                    CRF1000D: Install  the clutch EOP  sensor  cover [1] and bolts [2],
                               and tighten the bolts to the specified torque.                [3]
                               TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)
                               Clamp the linear solenoid wire [3] and main wire
                               harness [4] with the wire clamp [5].                                                [5]
                                                                                                                   [4]



                                                                                                                   [1]


                                                                                                   [2]
                    CRF1000D: Connect linear solenoid 4P (Black) connector [1].
                               Install the wire band [2].
                                                                                                                   [1]












                                                                                      [2]
